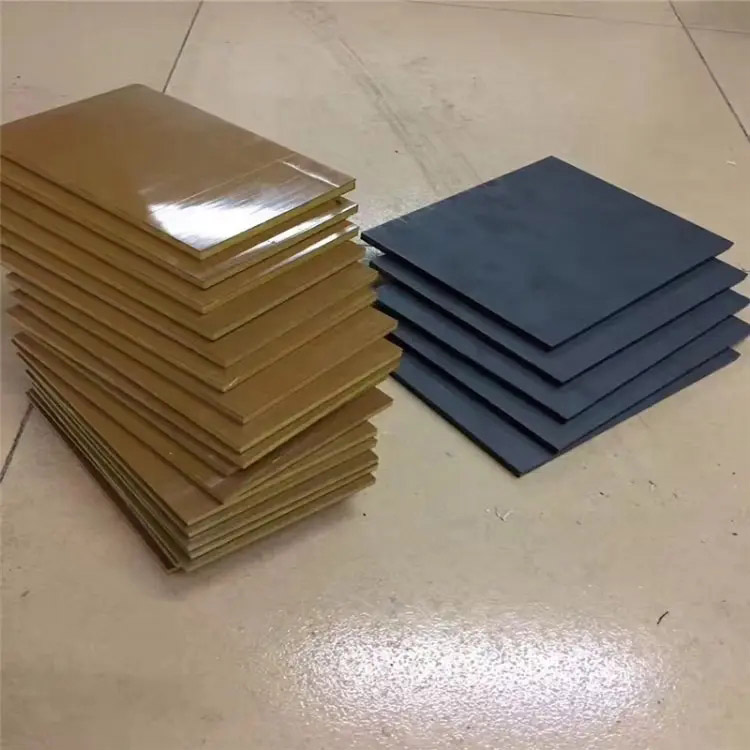

Halogen-free & Hi-Tg, Low CTE, Excellent Thermal Resistance and High Reliability
Characteristic
¡ñ Polyimide system provides ultra-high thermal performance, with Tg£¾250¡æ (TMA), Td£¾405¡æ (5% loss, TGA), and T300£¾60min.¡ñ Lower Z-axis CTE of 1.20% (50-260¡æ) offering superior PTH reliability.
¡ñ Maintain mechanical strength and bonding strength at high temperature.
¡ñ Tough resin system, Non-MDA chemistry.
¡ñ Halogen-free chemistry compatible with lead-free processing. RoHS/WEEE compliant.
¡ñ IPC 4101D/40,/41.
Application Area
¡ñ Burn-in Board
¡ñ Down Hole
¡ñ Aircraft and Aerospace
¡ñ Other PCB requirements to work under high temperature in long time
| Items | Method | Condition | Unit | Typical Value |
|---|---|---|---|---|
| Tg | 2.4.24 | TMA | ¡æ | £¾250 |
| Td | 2.4.24.6 | 5% wt. loss | ¡æ | 429 |
| T300 |
2.4.24.1 |
TMA |
min |
£¾60 |
| CTE (Z-axis) | 2.4.24 | 50-260¡æ (X/Y) | ppm/¡æ | 12-15 |
| ¦Á1 (before Tg) | ppm/¡æ | 45 | ||
| 50-260¡æ | % | 1.20 | ||
| Dissipation Constant (1GHz) | 2.5.5.9 | C-24/23/50 | - | 4.12 |
|
Dissipation Factor (1GHz) |
2.5.5.9 |
C-24/23/50 |
- | 0.007 |
| Volume Resistivity | 2.5.17.1 | C-96/35/90 | M¦¸.cm | 7.45 x 107 |
|
Surface Resistivity |
2.5.17.1 |
C-96/35/90 | M¦¸ | 4.79 x 107 |
| Arc Resistance | 2.5.1 | D-48/50+D-0.5/23 | s | 180 |
| Dielectric Breakdown | 2.5.6 | D-48/50+D-0.5/23 | kV | 40.5 |
| Peel Strength (1Oz) | 2.4.8 | 288¡æ/10s | N/mm[lb/in] | 1.37[7.83] |
| Flexural Strength | 2.4.4 | 50¡æ/260¡æ | MPa |
530/439 |
| Water Absorption | 2.6.2.1 | E-1/105+D-24/23 | % | 0.26 |
|
Flammability |
UL94 |
C-48/23/50 |
Rating |
HB |
Remarks:
1. Specimen thickness: 1.6mm. Test method is according to IPC-TM-650.
2. All the typical values listed above are for your reference only and not intended for specification. Please contact Shengyi Technology Co., Ltd. for detailed information. All rights from this data sheet are reserved by Shengyi Technology Co., Ltd.Explanation: C=Humidity conditioning, D=Immersion conditioning in distilled water, E=Temperature conditioning.
The first digit following the letter indicates the duration of preconditioning in hours, the second digit the preconditioning temperature in ¡æ and the third digit the relative humidity.
