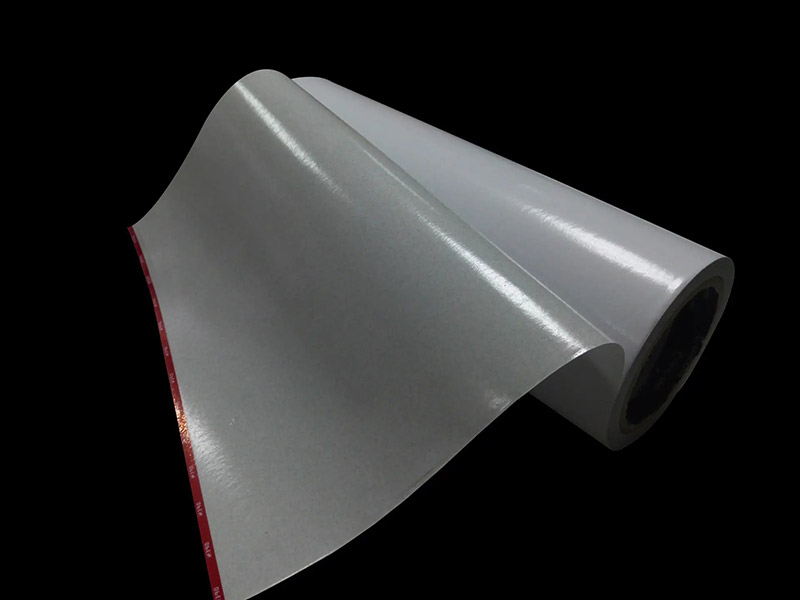

Casting PI Adhesiveless DS flexible copper clad laminate

Navigation

Product: Rigid Materials; Automotive Materials; RF Materials; IMS and HTC materials; IC Substrate Materials; Flexible Materials; HSD Materials; PCB

Shengyi PCB Technology Co., Ltd.
Address: Shengyi PCB Park, Zhiying Road, Dalingshan town, Dongguan, China
Company website: www.ShengyiPCB.com
Email: sales@shengyipcb.com
Tel:+86 755 27083541
Fax:+86 755 33924702
Phone：+86 18664336909

Current Location:Home > Product > Flexible Materials >

Release Date：2022/4/16 9:37:23

Characteristic

●Excellent soldering reliability, dimensional stability and chemical resistance

●Excellent mechanical and electrical properties .

●Halogen free, Flammability UL94 VTM-0.

●Compatible with EU RoHS directive, free of Pb,Hg,Cd, Cr6+,PBB,PBDE, etc..

Application Area

Computer, mobile phone, digital camera, VCR, flat panel display, apparatus and instrument, automotive electronics, etc..

Items	Method	Condition	Unit	Typical Value
Peel Strength (90°)	IPC-TM-650 2.4.9D	Accepted	N/mm	1.52
Peel Strength (90°)	IPC-TM-650 2.4.9D	288℃, 5s	N/mm	1.53
Solder Resistance	IPC-TM-650 2.4.13.F	288℃, 10s	-	No delamination
Dimensional Stability	IPC-TM-650 2.2.4B	After Etched	%	0.0251/0.011
Chemical Resistance	IPC-TM-650 2.3.2G	After Chemical Exposure	%	＞95
Electric Strength	IPC-TM-650 2.5.6.2A	D-48/50+D-0.5/23	KV/mm	178
Volume Resistivity	IPC-TM-650 2.5.17E	C-96/35/90	MΩ-cm	1.03×10⁷
Surface Resistance	IPC-TM-650 2.5.17E	C-96/35/90	MΩ	2.65×10⁶
Dielectric Constant (10GHz)	SPDR	C-24/23/50	-	3.36
Dissipation Factor (10GHz)	SPDR	C-24/23/50	-	0.0057
Folding Endurance	JIS C-6471	R0.38×4.9N	Times	＞80
Flammability	UL94	E-24/125	Rating	V-0

Remarks:

Certified to IPC-4204/25 Copper Clad Adhesiveless,Cast and Cured Polyimide
