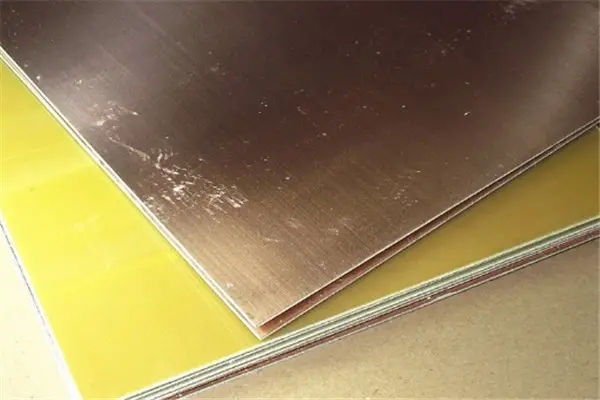

SAR30
Characteristic
¡ñ Halogen free and High CTI
¡ñThermal Conductivity 3.0 W/(m¡¤K)
¡ñ High PeelStrength
¡ñ Excellent Thermal Reliability and Insulation
Application Area
¡ñ Hi-power LED lighting
¡ñ Power Supply Board
¡ñ Automobile Lighting
| Items | Method | Condition | Unit | Typical Value |
|---|---|---|---|---|
| Thermal Conductivity | ASTM-D5470 | A | W/ (m•K) | 3.0 |
| Thermal Resistance | ASTM-D5470 | A | K¡¤cm2/W | 0.34 |
| Tg | 2.4.25D | DSC | ¡æ | 140 |
|
Td |
2.4.24.6 | Wt 5% loss | ¡æ | 395 |
| Thermal Stress | 2.4.13.1 | 288¡æ, solder float |
min |
30 |
| CTE (Z-axis) | 2.4.24 | Before Tg | ppm/¡æ | 20 |
| After Tg | ppm/¡æ | 31 | ||
| 50-260¡æ | % | 0.48 | ||
| Volume Resistivity | 2.5.17.1 | C-96/35/90 | M¦¸.cm | 108 |
|
Surface Resistivity |
2.5.17.1 |
C-96/35/90 | M¦¸ | 108 |
| Dielectric Breakdown | 2.5.6 | D-48/50+D-0.5/23 | kV | 5.0 |
| Hi-pot Test | CPCA4105-2012 | DC | V | 4000 |
| AC | V | 3000 | ||
| Peel Strength (1oz) | 2.4.8 | 288¡æ/10s | N/mm | 1.1 |
|
Flammability |
UL94 |
C-48/23/50 |
Rating |
V-0 |
| MOT | UL | A | ¡æ | 130 |
| CTI | IEC60112 | A | Rating | PLC 0 |
Remarks:
1. Typical value is based on specimen of 1.5mm Al/100¦Ìm dielectric/1oz Cu.
2. All the typical values listed above are for your reference only and not intended for specification. Please contact Shengyi Technology Co., Ltd. for detailed information. All rights from this data sheet are reserved by Shengyi Technology Co., Ltd.
Explanation: C=Humidity conditioning, D=Immersion conditioning in distilled water, E=Temperature conditioning
The first digit following the letter indicates the duration of preconditioning in hours, the second digit the preconditioning temperature in ¡æ and the third digit the relative humidity.
