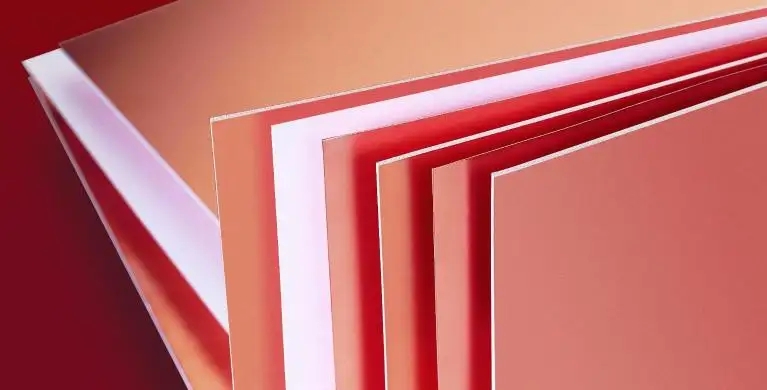

Millimeter wave radar with low loss of PTFE sheet

Navigation

Product: Rigid Materials; Automotive Materials; RF Materials; IMS and HTC materials; IC Substrate Materials; Flexible Materials; HSD Materials; PCB

Shengyi PCB Technology Co., Ltd.
Address: Shengyi PCB Park, Zhiying Road, Dalingshan town, Dongguan, China
Company website: www.ShengyiPCB.com
Email: sales@shengyipcb.com
Tel:+86 755 27083541
Fax:+86 755 33924702
Phone：+86 18664336909

Current Location:Home > Product > RF Materials >

Release Date：2022/4/15 23:12:30

Items	Method	Condition	Unit	Typical Value
Dielectric Constant, Process Dk	IPC-TM-650 2.5.5.5	10GHz/23℃	-	3.00±0.04
Loss Tangent	IPC-TM-650 2.5.5.5	10GHz/23℃	-	0.0010
CTE (X/Y/Z-axis)	IPC-TM-650 2.4.41	TMA (-55-288℃)	ppm/℃	16/16/22
Td	ASTM D3850	TGA	℃	538
Volume Resistivity	IPC-TM-650 2.5.17.1	A	MΩ·cm	1.04X10⁸
Surface Resistivity	IPC-TM-650 2.5.17.1	A	MΩ	4.38X10⁸
Peel Strength	IPC-TM-650 2.4.8	288℃/10s	N/mm [lb/in]	1.64 [9.37]
Electrical Strength	IPC-TM-650 2.5.6.2	0.127mm [0.005”]	kV/mm	60
Water Absorption	ipc-tm-650 2.6.2.1	D-24/23	%	0.01
Thermal Conductivity	ASTM C518	100℃	W/(m·K)	0.50
Density	ASTM D792	-	g/cm³	2.15
Flammability	UL-94	C-48/23/50	Rating	V-0
